EP700HL: 600 Ltr Cabinet Dual Temperature
41-487
Dual temperature cabinet
About the product
-
With EcoPro G3 Cabinets you get the best of both worlds: high performance coupled with low energy consumption, from the Refrigeration Experts.
Available to finance with our award-winning interest-free credit and leasing options
Learn more about our EcoPro G3 range
Take a look inside the G3
Specification
Technical
- Refrigerant
- R290
- Temperature
- Refrigerator +1/+4°C
- Electrical supply
- 230/50/1
- Fuse rating (A)
- 10
- Current (A)
- 1.6
- Power (W)
- 240
- Refrigerant mass (g)
- 65
- Temperature 2
- Freezer -18/-21°C
- Fuse rating (A) 2
- 10
- Current (A) 2
- 2.8
- Power (w) 2
- 475
- Refrigerant mass (g) 2
- 65
- Thermal heat rejection (W)
- 480
Dimensions
- Height (mm)
- 2080
- Width (mm)
- 700
- Depth (mm)
- 825
- Gross volume (ltr)
- 270
- Net volume (ltr)
- 177.4
- Leg type
- Braked castors
- Gross weight (kg)
- 155
- Net weight (kg)
- 149
- Gross volume (ltr) 2
- 270
Build
- Cabinet type
- Dual temperature
- Finish ext/int
- S/S & Alu
- Number of sections
- 1
- Section configuration
- Right hinge
- System
- Integral
Energy
- Climate Class
- 5
- Energy grade
- C
- EEI
- 42.47
- AEC (kWh)
- 382.48
- GWP
- 3
- Energy grade 2
- D
- EEI 2
- 53.73
- AEC (kWh) 2
- 1261
- Energy consumption (kWh/24hr)
- 1.0479
- Energy consumption (kWh/24hr) 2
- 3.45
Features and benefits

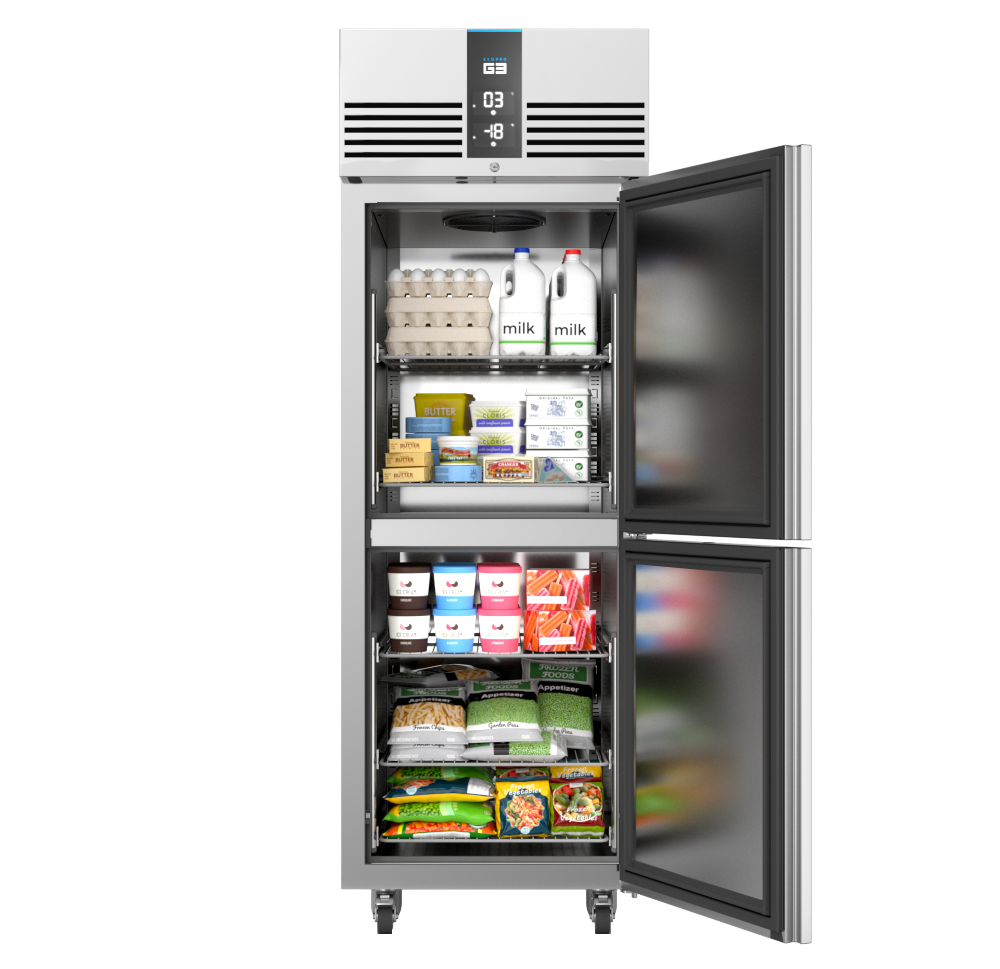

- This model offers refrigerator and freezer temperatures in the same cabinet - perfect for when space is at a premium
- Fitted with our new and improved +stayclear condenser which helps increase product life and reduce energy consumption, +stayclear helps your low energy fridge stay a low energy fridge. Now fitted across the cabinet and counter range as standard
- Foster Shield provides advanced temperature control and hygienic design, protecting from the dangers of unsafe food storage. With air distribution optimised by CFD design technology, efficient operation is assured, even when shelves are fully loaded
- With PureControl, the G3's controller display uses pure LEDs, incorporating InGaN technology, which means it achieves higher resolution, lasts longer - all while using less power. Through the simple addition of a gateway, you’re connectivity-ready
- High quality 304 stainless steel is used as standard on all doors and unit covers for G3 – the gold standard in performance stainless steel – meaning the heaviest usage touchpoints on the product are covered
- Market leading usable capacity, now supplied with 4 shelves as standard making your money go further – holds more than a conventional fridge
- Operates in ambient temperatures of up to 43°C
- This is a dual refrigeration system and requires two power supplies. Data about each system can be found in the spec table “Temperature” and “Temperature 2”
Product downloads
Download all available product assets. Find user and service manuals here.
-
- 150mm castors are not available if product is supplied less condensing unit
- Adequate airflow and service space must be kept above the top of cabinet: 100mm
- Depth with door open is 1500mm
- This is a dual refrigeration system – data about each system can be found in the spec table above for example “Temperature” and “Temperature 2”
