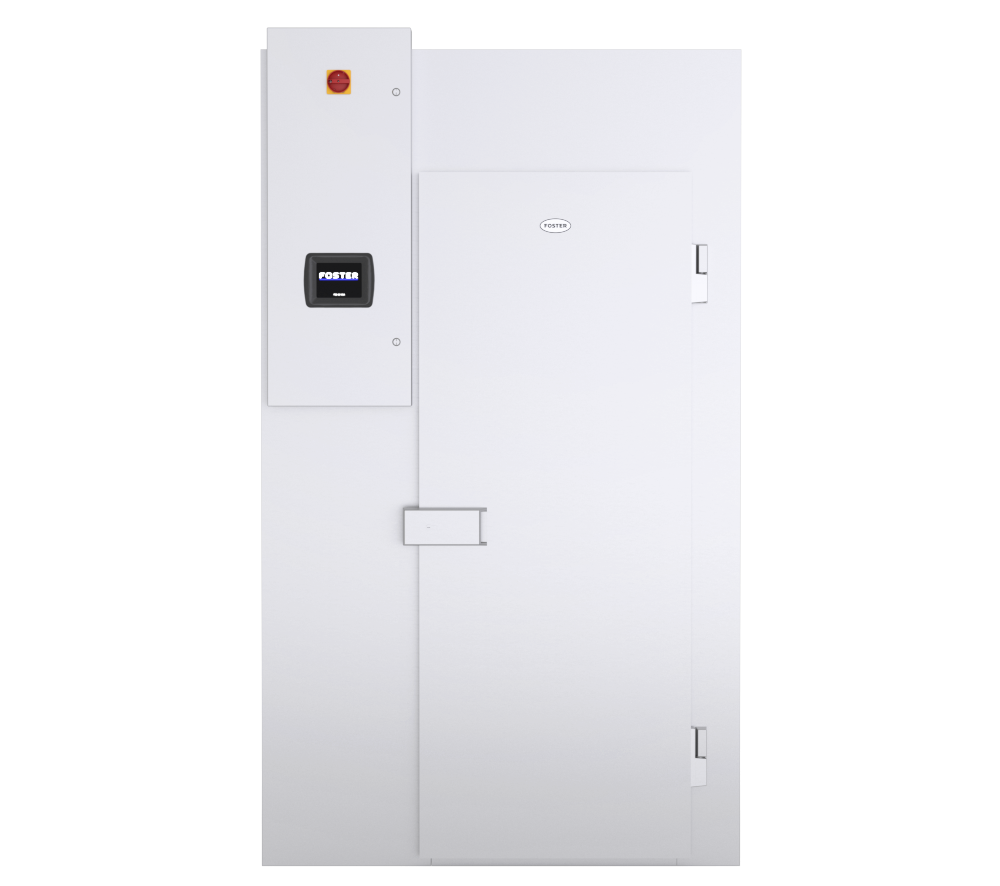

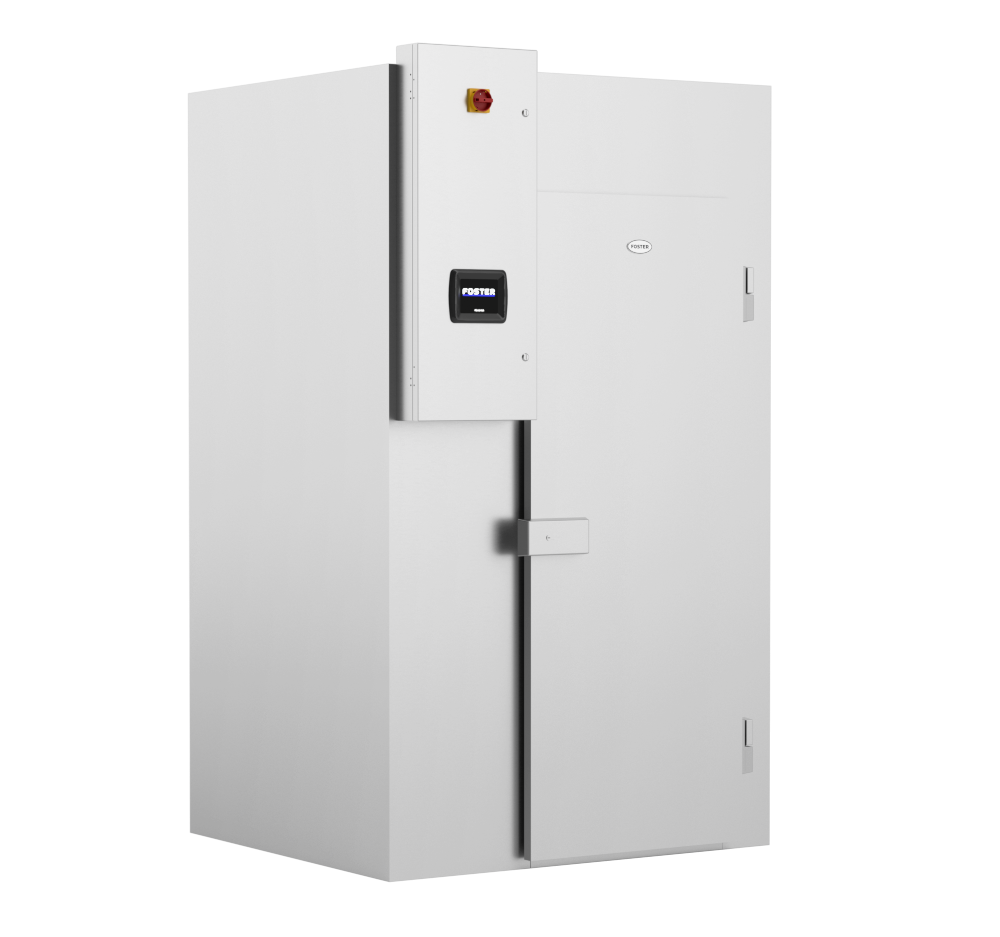

MBCT75: 75kg Modular Blast Chiller
17-122
Floorless modular blast chiller with 700mm door width
About the product
-
High capacity Modular Blast Chillers from the Refrigeration Experts allow bulk rapid chilling without compromising food safety or quality.
Available to finance with our award-winning interest-free credit and leasing
Learn more about our Blast Chiller range
Specification
Technical
- Refrigerant
- R404a/449a/452a
- Electrical supply
- 230/50/1
- Fuse rating (A)
- 16
- Current (A)
- 4.3
- Power (W)
- 1080
- Refrigeration duty (kW)
- 8850
Dimensions
- Height (mm)
- 2350
- Width (mm)
- 1350
- Depth (mm)
- 1300
- Gross volume (ltr)
- 75
- Chilling capacity (kg)
- 75
- Gross weight (kg)
- 790
- Net weight (kg)
- 749
Build
- Finish ext/int
- White lam with S/S door & White foodsafe finish
- Section configuration
- Right hinge
- System
- Remote
Energy
- Climate Class
- 5
Features and benefits
- 75kg chilling capacity 70°C to 3°C in less than 90 minutes within specifications. Entry temperature of up to 90°C for chilling
- Supplied less condensing unit for remote application. Separate electrical supply required for condensing unit (3 phase+neutral)
- Doors to the front and rear of the unit allow for loading and unloading from both sides
- Foster Circulair air circulation system ensures uniform chilling whilst protecting the food surface
- Robust modular construction
- Intuitive easy touch control panel - Just press and go with easy to use colour coding to indicate cycle status
- Operator-friendly fans cut-out whenever the blast chiller door is opened
Product downloads
Download all available product assets. Find user and service manuals here.
Options
Learn more about product options and accessories.
- Drawer/Door material
-
Roll through white laminate door
Roll through 304 s/s/ door - Hinge
- Left
- RS485 connection for HACCP data logging
- Yes
View our immersive showroom
Footnotes
-
- Anti Condensation heater to control panel recommended where products are installed in an ambient below 15°C e.g. Prep rooms
- All models supplied less condensing unit for remote application. Separate electrical supply required for condensing unit (3 phase + neutral)
